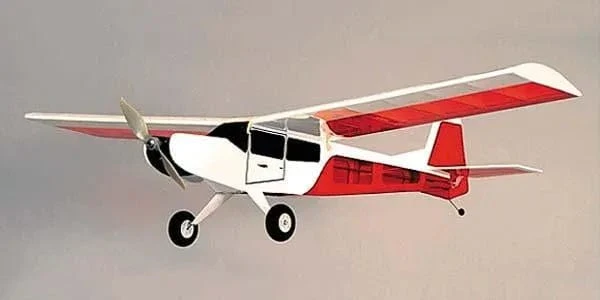

The Cloud Ranger features a sophisticated computer designed airframe that features interlocking parts for easy assembly, light weight and high strength. The fuselage contains approximately 25 precision laser cut parts and can be completely assembled in under one hour.

When built for electric power, the Cloud Ranger has an instant access flow through battery compartment that provides effective cooling and near instant battery changes. This prototype uses rubber bands to hold the battery in place but production kits will include Velcro straps for even easier battery installation.

The Cloud Ranger features full access motor installation that allows excellent cooling and easy maintenance. All parts are included in the kit for both glow and electric powered versions. (Power package is not included)

The Cloud Ranger assembles quickly, is convenient to transport, and provides outstanding performance with minimal fuel consumption.



Wingspan :                 42 in    1067 mm

3 Channel Area           296 sq in          19.1 dm²

4 Channel Area           324 sq in          20.9 dm²

Mini Radio Rec.          3 or 4 Channel R/C



Glow Powered                                              Electric Powered

Weight:           16.5 oz                                  468 g   Weight            22.2 oz

Wing Load 3ch: 8.04 oz/sq ft    2453 g/m²    Wing Load 3ch           10.82 oz/sq ft  3302 g/m²

Engine .049-.061cu in 80-.99 cm³                Engine Speed 400class
