Hobbytech 9G Digital Metal Gear 1.8kg Servo [S0009D]
Hobbytech S0009D 1.5kg Digital Metal Gear Micro Servo

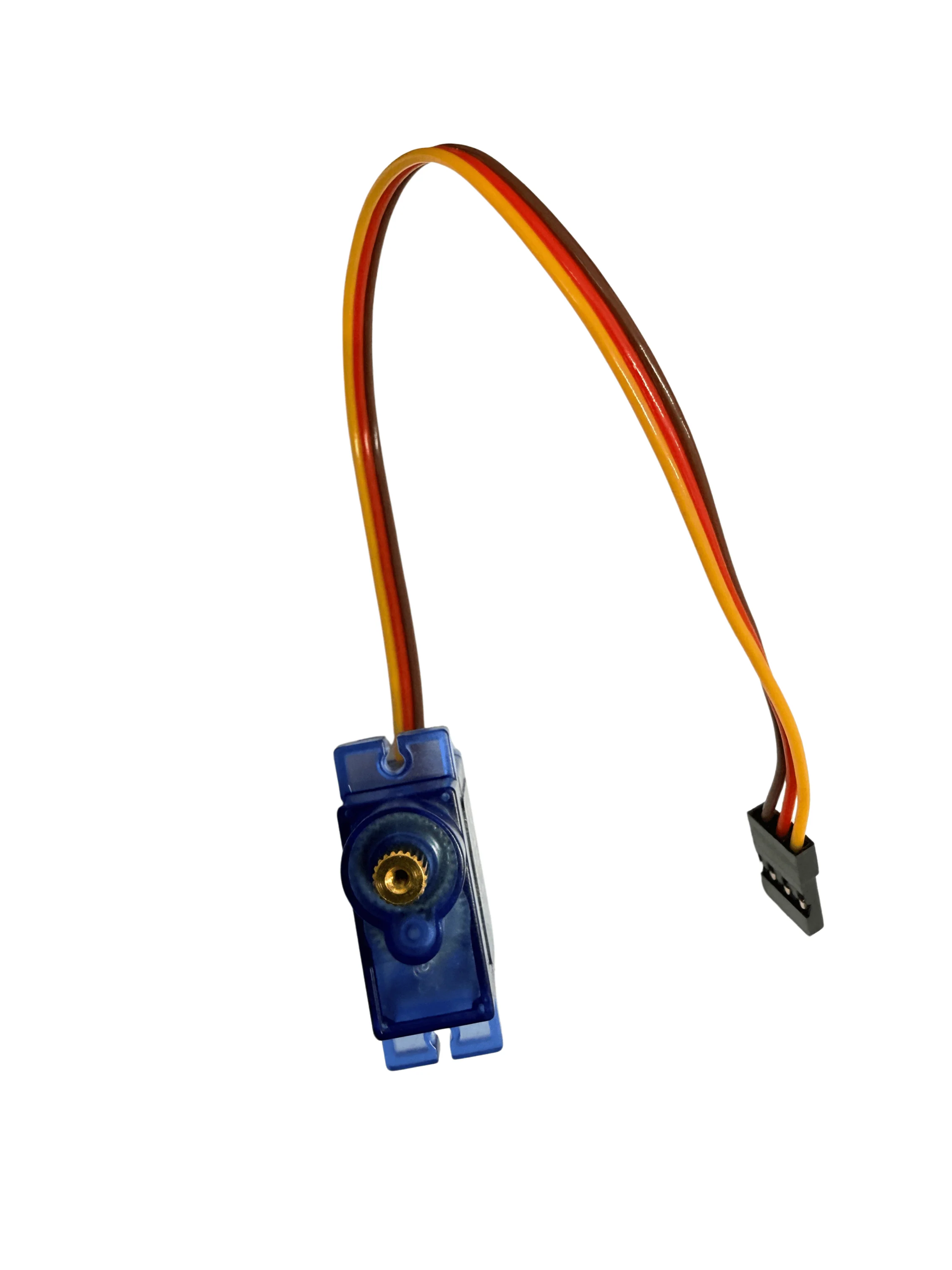

The Hobbytech S0009D Digital Micro Servo is a compact and lightweight steering or control servo designed for smaller RC models and space-restricted hobby applications. Weighing just 9g, it combines a small footprint with responsive digital control and a durable metal gear drivetrain.
Operating between 4.8V and 6.0V, the S0009D delivers up to 1.5kg.cm of stall torque and an operating speed of 0.10 seconds per 60° at 6.0V. Its compact dimensions make it suitable for micro and lightweight RC cars, aircraft, boats and other hobby projects where size and weight are critical.
The servo uses a 21T output spline and includes a 180mm receiver lead for straightforward installation.
Key Features
Compact 9g digital micro servo
Up to 1.5kg.cm stall torque at 6.0V
Fast 0.10sec/60° operating speed at 6.0V
Metal gear drivetrain
Iron-core motor
Compatible with 4.8V and 6.0V systems
21T output spline
180mm receiver lead
Suitable for lightweight and compact RC applications
Performance
At 4.8V
Operating speed: 0.12 seconds per 60° at no load
Stall torque: 1.3kg.cm
Stall current: 0.9A
At 6.0V
Operating speed: 0.10 seconds per 60° at no load
Stall torque: 1.5kg.cm
Stall current: 1.0A
Specifications
Brand Hobbytech
Model S0009D
Servo Type Digital
Motor Type Iron core
Gear Type Metal
Weight 9g
Dimensions 22.3 × 11.8 × 26.3mm
Operating Voltage 4.8–6.0V
Operating Temperature -10°C to +50°C
Neutral Signal 1500μs
Signal Range 1000–2000μs
Operating Angle 45° each side at 500μs travel
Direction Anticlockwise
Dead Band Width 4μs
Output Spline 21T
Receiver Lead Length 180mm
Idle Current 10mA
No-Load Current at 4.8V 120mA
No-Load Current at 6.0V 150mA
Wiring Information
Brown or black: Negative
Red: Positive
Orange or white: Signal
Compatibility Notice
Before installation, confirm that the servo dimensions, operating voltage, 21T output spline and connector wiring are compatible with your model. Ensure the receiver or BEC can supply sufficient current under load.
