Hobbytech 9G Analog 1.5kg Servo [S0009A]

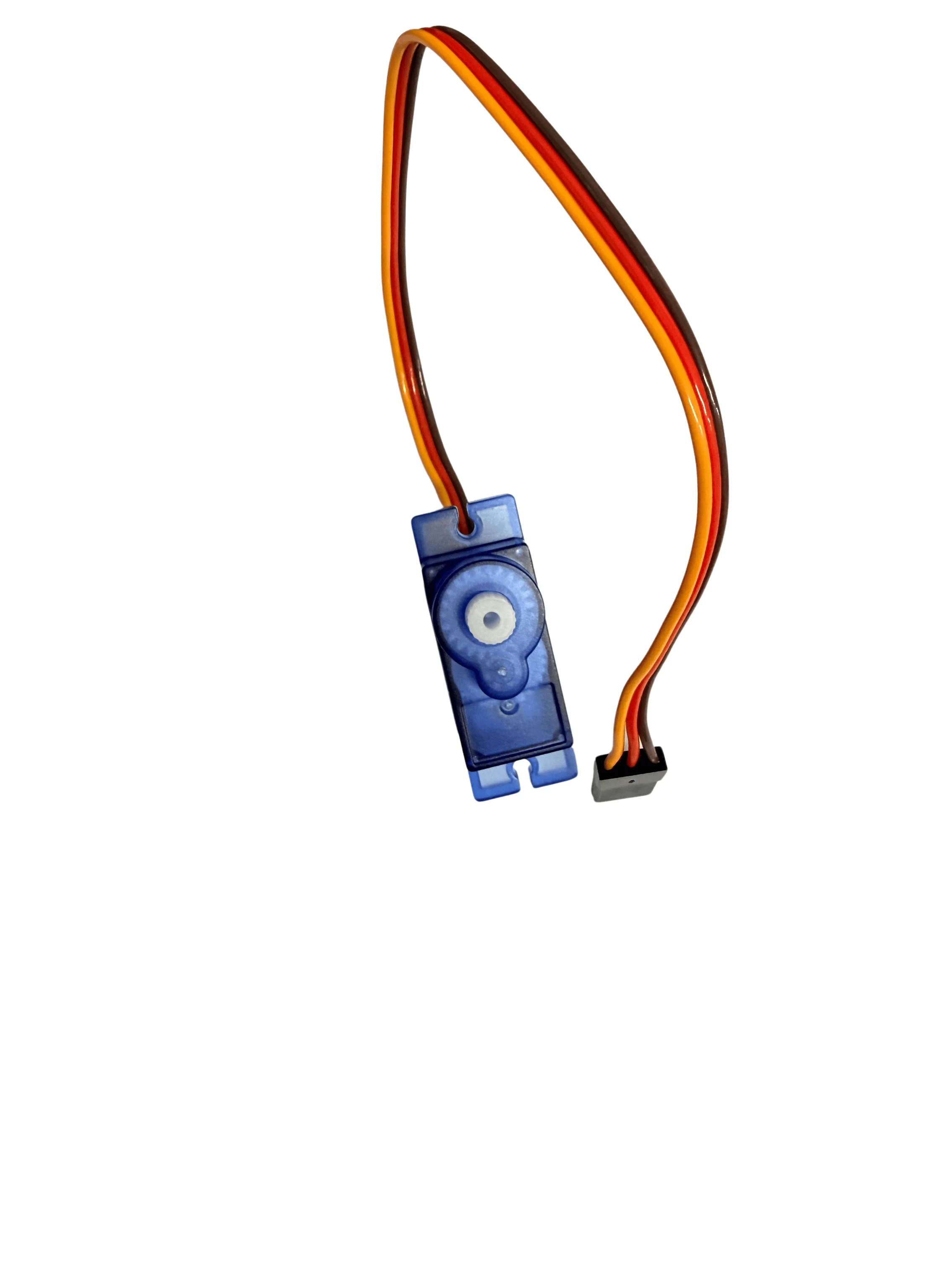

Hobbytech S0009A 1.5kg Analog Micro Servo
The Hobbytech S0009A Analog Micro Servo is a compact and lightweight control servo designed for small RC models and hobby applications where space and weight are limited. Weighing just 9g, it is well suited to micro RC cars, lightweight aircraft, boats and other compact projects.
Operating between 4.8V and 6.0V, the S0009A delivers up to 1.5kg.cm of stall torque and an operating speed of 0.10 seconds per 60° at 6.0V. Its analog control system provides dependable operation, while the compact case and 180mm receiver lead make installation straightforward.
The servo uses a 21T output spline and a lightweight plastic gear train.
Key Features
- Compact 9g analog micro servo
- Up to 1.5kg.cm stall torque at 6.0V
- Fast 0.10sec/60° operating speed at 6.0V
- Lightweight plastic gear train
- Iron-core motor
- Compatible with 4.8V and 6.0V systems
- 21T output spline
- 180mm receiver lead
- Suitable for compact and lightweight RC applications
Performance
At 4.8V
- Operating speed: 0.12 seconds per 60° at no load
- Stall torque: 1.2kg.cm
- Stall current: 0.8A
At 6.0V
- Operating speed: 0.10 seconds per 60° at no load
- Stall torque: 1.5kg.cm
- Stall current: 0.9A
Specifications
| Specification | Details |
|---|---|
| Brand | Hobbytech |
| Model | S0009A |
| Servo Type | Analog |
| Motor Type | Iron core |
| Gear Type | Plastic |
| Weight | 9g |
| Dimensions | 22.3 × 11.8 × 26.3mm |
| Operating Voltage | 4.8–6.0V |
| Operating Temperature | -10°C to +50°C |
| Neutral Signal | 1500μs |
| Signal Range | 1000–2000μs |
| Operating Angle | 45° each side at 500μs travel |
| Direction | Anticlockwise |
| Dead Band Width | 4μs |
| Output Spline | 21T |
| Receiver Lead Length | 180mm |
| Idle Current | 10mA |
| No-Load Current at 4.8V | 260mA |
| No-Load Current at 6.0V | 300mA |
Wiring Information
- Brown or black: Negative
- Red: Positive
- Orange or white: Signal
Compatibility Notice
Before installation, confirm that the servo dimensions, operating voltage, 21T output spline and connector wiring are compatible with your model. Ensure the receiver or BEC can supply sufficient current under load.
