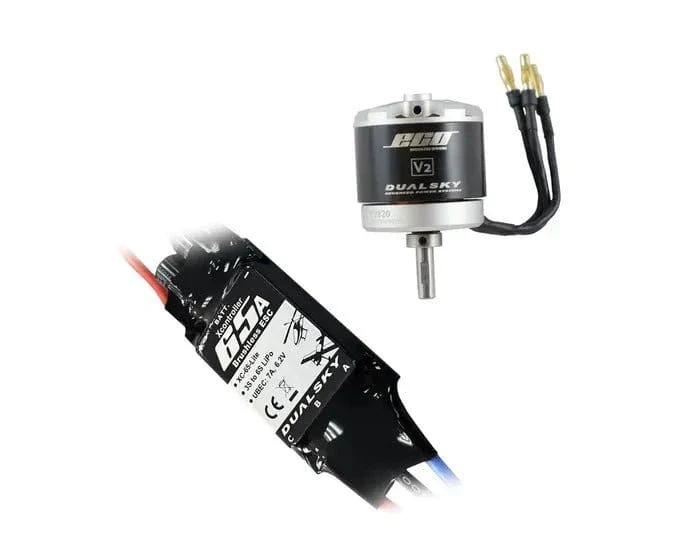

Dualsky 40E Tuning Combo with 3520C 820kv Motor and 65A Lite ESC
This is the Dualsky 40E Tuning Combo with 3520C 820kv Motor and 65A Lite ESC [
This Dualsky 40 size Tuning Combo contains the 3520C V2 820kv brushless motor and matching 65A Lite ESC. It's designed for use in .32-.45 size model planes and for 4S LiPO batteries. Using 13x6E to 15x6E propellers can yield flight times greater than 10 minutes.
The motor comes with an X mount enabling it to be bolted to the firewall or on standoffs. Note that a battery connector for the ESC is not included.
Motor Specs
- KV: 820
- Turns: 5
- Weight (g): 210
- Dimensions(D x L) [mm]: 43.2x42.4
- Slots & Poles: 12N14P
- Ri (mOhm): 18.7
- lo @10V (A): 1.7
- No. of Cells (LiPo): 3 / 4
- Max. Efficiency Current [A]: 40
- Max. Burst Current (15S) [A]: 65
- Max. Power(15S) [W]: 1040
- Max. Torque [N*M]: 0.91
- Shaft diameter(mm): 6
- Mounting holes pitch: 25/25
- Input Connectors: GC4.0
- Recommended ESC: XC-65-Lite or XC6018BA
- Propeller: 4S: 13x8E, 14x7E, 15x6E
- Class: .50 4-stroke or .32-.40 2-stroke (40E)
ESC Specs
- Dimensions (L x W x D): 72 x 33 x 12mm
- Weight (with wires): 61g
- Number of Cells: NiXX 6-18 cell, 7.2-21.6V
- LiPo: 3-6s, 7.4-22.2V
- Resistance(Ri)(Ohm): 0.002
- Max Cont. Current & Max Cont. Output: 65A, 1200W
- Max Burst Current & Max Burst Output: 80A, 816W
- BEC / Dissipative Power: 6.2V/7A (UBEC)
- Programmable: Throttle + ProgCARD V2
- Signal Wire: 300MM JR
